Zero88 ゼロエイティーエイト Solution DMX 調光卓 ビームテック

【仕様】

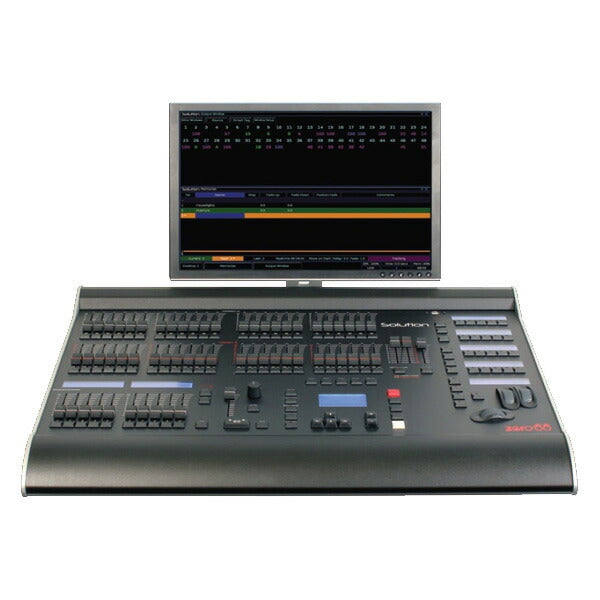

Zero88 Solution
DMX 調光卓
ゼロエイティーエイト
Fixtures: 248
Control Channels: 2048
patchable to any combination offixtures/dimmers
DMX Output: 4 x DMX512-A opto- isolated via 4 x XLR 5
overvoltage protected. RDM Enabled
Ethernet protocols（RJ45 port）: Art-Net（4 universes）, sACN
（4 universes）, Zero Wire DMX, LightConverse, Capture,WYSIWYG, Remotes, Tracking Backup
DMX Input: 1x DMX512-A
Submaster Faders: 200（10 faders x 20 pages）. Submasters
also available via DMX In
Channel Faders: 48
Grand Master & Blackout Button: Yes
Channel Preset Master Faders: 2
Fixture Control Wheels: 3
On-board LCDs: 8x negative mode blue, white LED backlight
Memories: 10,000
Palettes: 1600（400 each of Colour/Beam/ Position/Effects）
Groups: 400
Macros: 400
Online Help: Yes
Power Supply（supplied）: External Power Supply, +12VDC,+5VDC
Mains inlet via CEE22 connector, connection to lighting desk
via 4 pole locking XLR with switch on desk
Supply Voltage: 100-260VAC, 47-63Hz
Audio Input: Stereo 1/4”, Jack socket, 100mV - 10V
Monitor Output: XGA output via standard 15pin D connector
Upto 4 additional monitors available via Ethernet remote
USB Ports: 4 x USB ports（1 on front panel, 3 on rear panel）
Data Storage, Mouse, Keyboard, Touch screens via USB
Remotes: via Ethernet, iOS, Android, Windows Mobile andWindows PC devices are supported

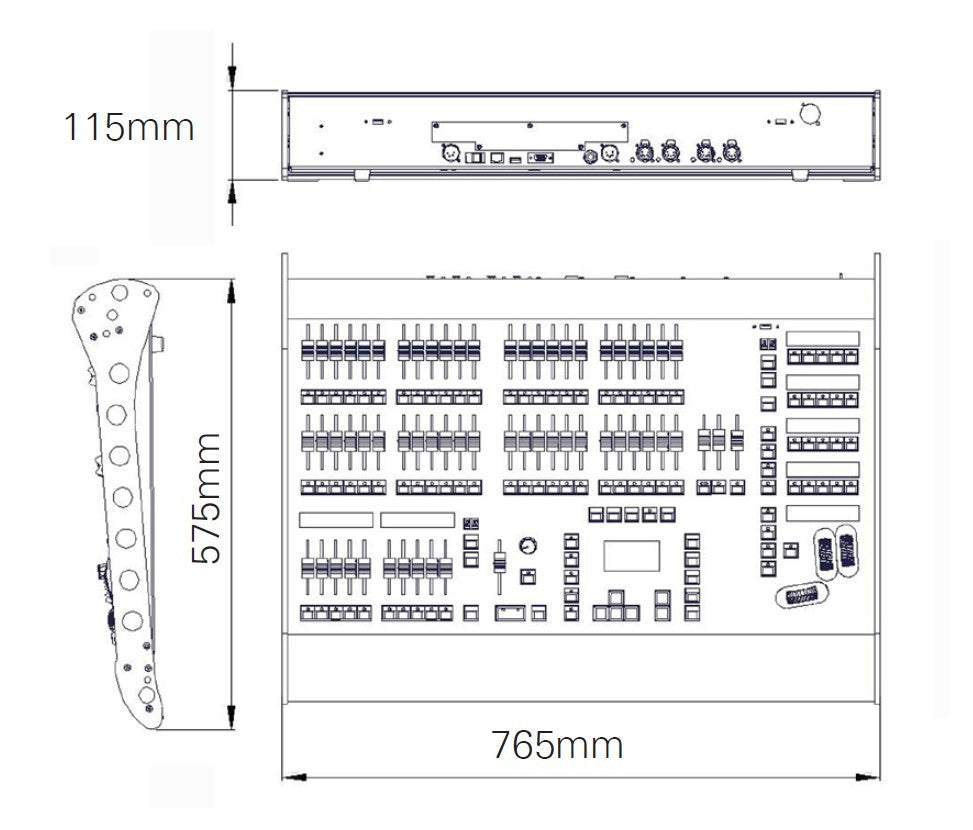

Dimensions: 115（H）x 765（W）x 575mm（D）
Weight: 16.0Kg
・熟練な技術者による迅速・丁寧な技術サポート。修理・メンテナンスは弊社にて承ります。
