Zero88 ゼロエイティーエイト FLX DMX 調光卓 ビームテック

【仕様】
Zero88 FLX
ゼロエイティーエイト
DMX 調光卓

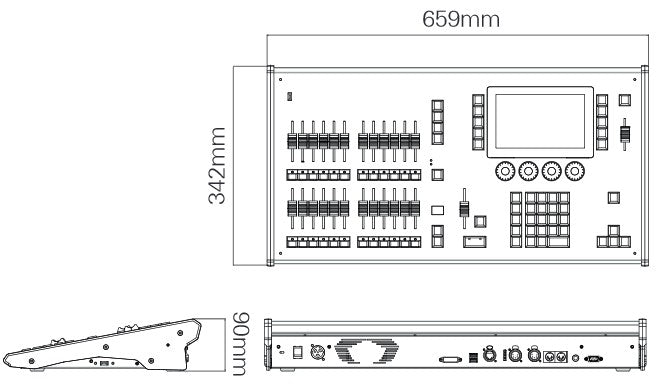

Hardware - Front Panel
24 Multifunctional Faders（channels or playbacks, with select or go buttons）
Internal 7” multi-touch screen（using ‘PCAP’ technology）
Master Playback with Go Button playback, pause and master intensity
4 embedded encoder wheels with select buttons
4 User Definable Keys（advanced functionality or programmable）
Syntax Keys with familiar layout
Grand Master and Blackout button
Hardware - Inputs/Outputs
2 Neutrik 5-pin XLR connectors for DMX output（RDM ready）
Ethernet via Neutrik etherCON（Visualisation, Remote Apps and Tracking Backup）
4 Universes over Ethernet using Art-Net or sACN
5 multipurpose USB ports（saving shows, connection of accessories & wings, software updates）
1 DVI-D monitor output（optional touch screen control）
Midi In/Thru（Notes, Time-code, Show Control）
8 Contact Closure triggers via D-Sub connector
6.35mm（1/4”）Jack input for Sound to light
Internal power supply（Neutrik powerCON connector）
Software - capacity
2048 control channels
241 Playbacks（equivalent of Cue Stacks, Submasters or Chases）
10,000 cues
4 x 240 Palettes（Colour, Beam, Shape, Position）
240 Effect palettes, with fully customisable effects engine
240 groups
240 macros
Software - features
Familiar Command Line interface
Integrated colour picker, filter lookups, “Mood Boards by LEE Filters”
Stage sizing and positioning
Auto palettes, groups and fixture macros
Gobo previews and library
Move on Dark
Tracking and Non-Tracking modes available
Support for wireless remote control through
handheld devices and remote monitors
Support for Tracking Backup over Ethernet
・熟練な技術者による迅速・丁寧な技術サポート。修理・メンテナンスは弊社にて承ります。
・クレジットカードによる支払いは不可。
